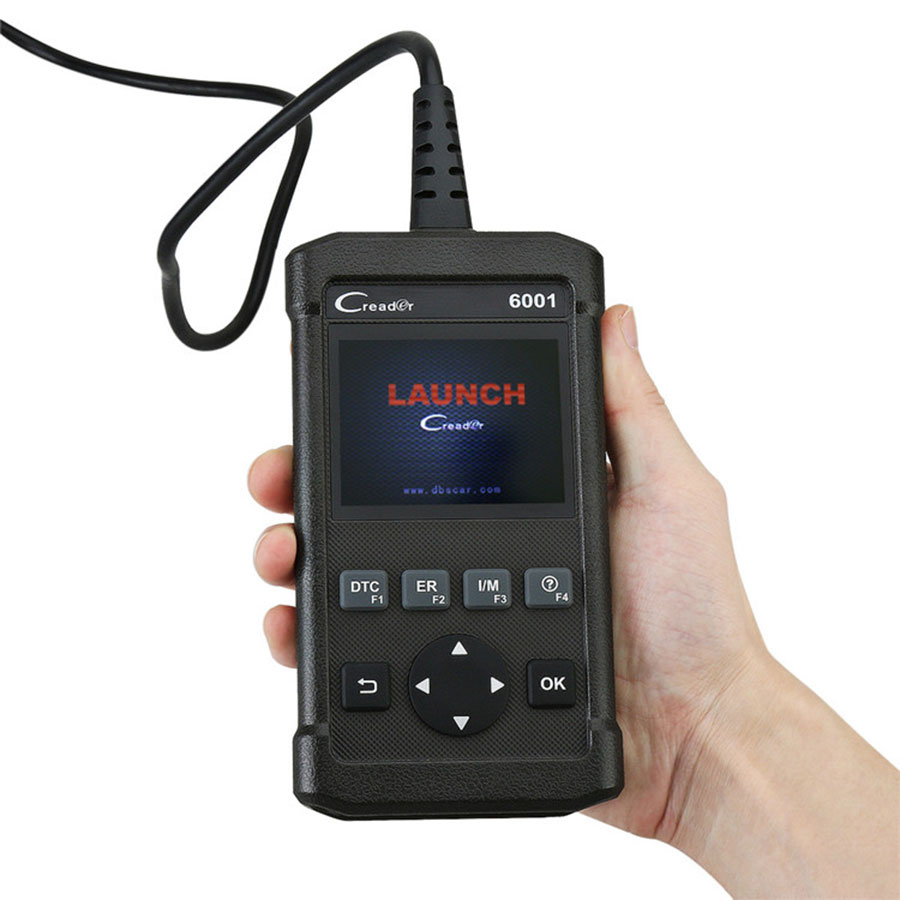

Launch CReader 6001 is a small-size color CReader with complete functions. Launch CReader 6001 provides full OBDII/EOBD diagnostic functions and meets protocols such as ISO9141-2, ISO14230-4, SAEJ1850, and ISO15765-4. Launch CReader 6001 features a 2.8-inch color display, graphical data streams, USB interface internet update, as well as records and replays data.



Launch CReader 6001Functions:

1. OBD full functions

•Read dynamic data streams

•Read readiness status

•Turns off Malfunction Indicator Light (MIL)

•Query freeze frame data

•Read current DTCs

•Clear DTCs

•O2 sensor test

•On-board monitor test

•Read pending DTCs

•On-board system or component control

•Read vehicle information

•Read permanent DTCs

2. Color and graphical display of data streams

3. Query DTCs

4. Free update via internet

5. Multilingual support

6. Data record and replay

7. Print data via PC



The main difference between the Launch CReader 6001 and Launch CReader CR5001: CR6001 provides the data record and replay function.



Launch CReader 6001 Specifications:

Screen: 2.8" TFT 320*240 dpi

Voltage range: 9-18V

Operating Temperature: 0℃~ 50℃(32℉-122℉)

Environment Temperature: -20℃~70℃(-4℉-158℉)

Dimension: 142mm*85mm*30 mm (5.6 " *3.4" *1.2"
