Original Tango Key Programmer is a new generation of transponder programmer which is developed to cover, read, write and generate the latest transponders used in the latest vehicle immobilizer technologies.



Original Tango Key Programmer Notice:

1. After buy it, you will need to connect to the official website and update within 28 days, or it will get locked

2. If you want to get authorization for special functions or cars, please refer to official website.

3. After generating a new transponder with Original Tango Key Programmer, you will not need any additional diagnostic equipment to program the generated transponder to the car! It will start the car directly, even on new FIAT CODE 2 system, also used in PSA Group vehicles! Only you have to write the new file back into the immobilizer system!

4. If your Tango already get G chip authorization, it can only generate G chip 10 times per day.

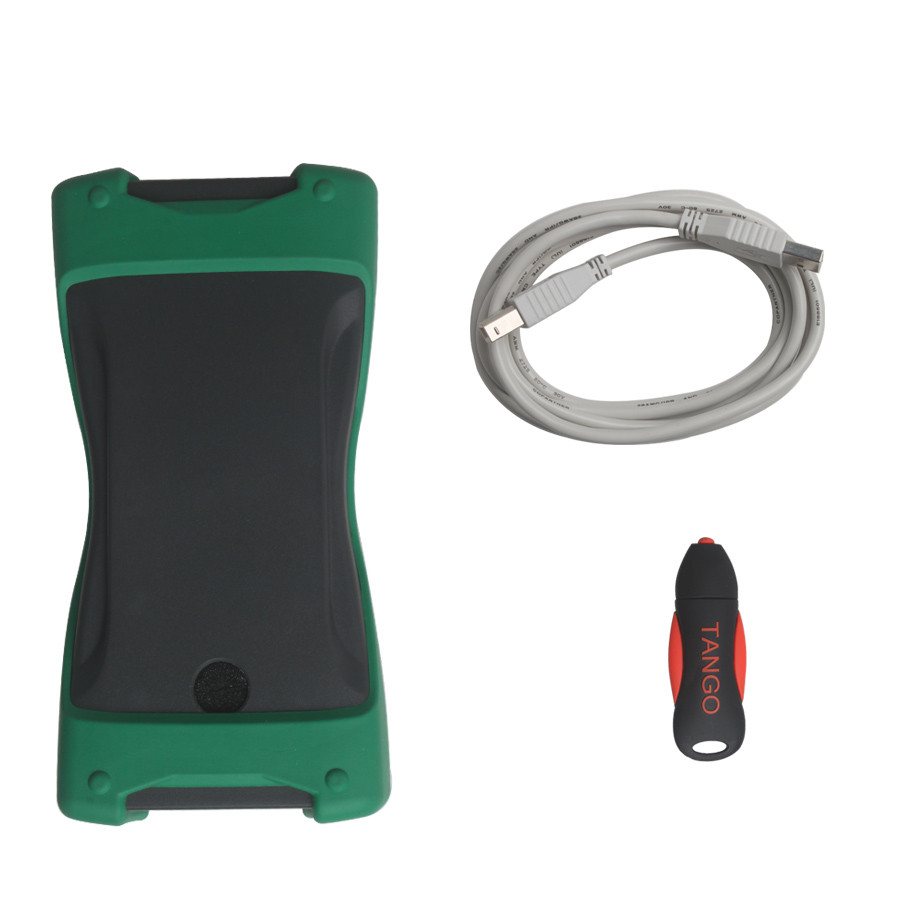

Original Tango Key Programmer Hardware:

The Original Tango Key Programmer has an ergonomic design with high mechanical characteristics of IP65 class conforming to the DIN EN 60529 standard

1.Enclosure is made of 3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element

2.Power is derived from the USB cable, so does not require an external power source

3.The TANGO uses a specifc type of driver, which avoids conflicts with other devices working through virtual ports

4.The hardware design accommodates keys and transponders of all sizes

5.Dimensions: length 160mm; width 80mm; height 50-30mm



Original Tango Key Programmer Update Information:

Tango Update 1.110.1 Software:

[+]    SLK-05 Transponder launched! Supports Toyota’s SmartKey AES

          (Page1  39)emulation. This feature allows to start an engine, to

          Learn new  keys.

[+]    TangoPlus for Toyota V6.5

          True Emulation via OBD of all SmartKeys Page1  39*

          The only right conception to solve the “All Keys Lost”problem.

[+]   Image generator Toyota Page1  39 on SLK-05.The generated

          Transpinder is fully compatible to Toyota requirements that A

          Customer is able to learn it vla OBD.*

[+]   Cloning Toyota SmartKey 128BIT(Page1  39) to SLK-05*

[+]   Key maker  BCM2 Audi A4/A5/Q5(95320,PCF7945AC)*

[+]   Key maker  BCM2 Audi A4/A5/Q5(NEC,PCF7945AC)*

[+]   Key maker  Ford Transit 2017-(NEC,DST80)*

[+]    Improved  Toyota Certification ECU maker: compatibility for keys   Page1  39

[+]    Improved  operations with PCF7930,31,35. Now it is possible to make  Individual settings to each type  of  transponders.



V1.106.0 Tango Software Newly Added (Free Online Update):

[+] Techtream calculator: v9.30, v10.10

[+] Key maker Citroen Jumper 2012-(95640,HITAG)*

[+] Key maker Isuzu NPR 2007-(93C56,HITAG)

[+] Key maker Peugeot 206 2001- (95160,HITAG)

[+] Key maker Peugeot Partner 2002- (95160,HITAG)

[+] Image generator Chevrolet Spark (ID8E)

[+] Cloning of Toyota and Subaru 80 bit Keys**

[+] Added transponders CN2, CN5 to the Clone mode



Key maker Toyota Yaris 2004 (93C56,4C)*

Key maker Kia Soul 2008- (TC1762,HITAG)

Key maker Isuzu KB250 2004- (93C66,4D)

Key maker Mitsubishi Fuso Canter 2009- (93C66,4D)

Key maker Fiat Ducato 2012- (95640,HITAG)*

Key maker Fiat Burstner Viseo 2011- (95640,HITAG)*

Key maker Kawasaki Denso ECU 21175-0811 (93C86,ID4D)

Key maker Peugeot Boxer 2012- (95640,HITAG)*

Key maker Peugeot Manager 2013 (95160,HITAG)*

Key maker Renault Latitude 2010- (9S12, HITAG)*

Key maker Renault Safrane 2010- (9S12, HITAG)*

Key maker Renault Samsung SM5 2010- (9S12, HITAG)*

Key maker VW New Betle (9S12, ID48EMU)

Dump maker BCM2 (95320,NEC)*

Image generator Great Wall ID40

Format Megamos48

Fixed bug EDC17 Dump editor



Philips Transponders:

PCF7930-31 writing, reading

PCF7935 writing, reading, shadow memory, crypto calculator

PCF7936 writing, reading, modes password, crypto, Manchester & Biphase encodings

PCF7941 transponder, remote, eeprom, Manchester & Biphase encodings

PCF7942 transponder, remote, eeprom, Manchester & Biphase encodings

PCF7943 transponder, remote, Manchester & Biphase encodings

PCF7944 transponder, remote, eeprom, Manchester & Biphase encodings

PCF7945 transponder, remote, eeprom, Manchester & Biphase encodings

PCF7946 transponder, remote, Manchester & Biphase encodings

PCF7947 transponder, remote, eeprom, Manchester & Biphase encodings

PCF7952 transponder, remote, eeprom, Manchester & Biphase encodings

PCF7961 transponder, remote, Manchester & Biphase encodings

Auto switching between PCF7936-PCF7961 windows if invalid type detected.

Autodetect manchester / biphase



Temic Transponders:

Temic 11 reading , writing to T5

Temic 12 reading , writing to T5

Megamos Transponders:

Megamos (13) reading , writing to T5 , emulating on PCF7930-35

Megamos (48) reading, writing, PIN, unlock by PIN, full range of memory contents, crypto calculation

Megamos CRYPTO-2 (8E) read ID, read/write EEPROM, write Cryptokey



Texas Transponders:

Tiris (4C) reading

Tiris (4D) DST crypto reading, writing, crypto calculator

Tiris (4E) DST crypto reading, writing, crypto calculator

Tiris (8C) reading



Atmel:

TK5551M (T5 replacement)

SAAB reading , writing to T5

The product is in working out stages, therefore the list of the supported transponders will be developed later.



Key Maker Usage.

Key maker usage consists of a four steps. The 4-th step is additional and depends on a vehicle model.

1. Open an immobilizer dump file.

2. Choose number of the key you want create.

3. Place a transponder into the coil and click the WRITE button.

4. In some cases the program asks you to save a modified immobilizer dump. This dump must to be written into the immobilizer.



How to use Original Tango Key Programmer?

Firstly, run the key maker interface according to the vehicle and read information in the "Info" window. Watch theData location field describes the memory chip. Find out the chip inside of the immobilizer and read it. Save the read data (dump).

Click the "OPEN IMMOBILIZER FILE" button and load the saved dump.

The program will analyse the dump.

If the dump is correct the "WRITE" button will become active and the "Keys" window will display the range of key numbers that can be created.

Take a look at the "Info" window, the Allowed transponder field.

Ensure you use a transponder exactly the indicated type.

Place the transponder into the coil.

Choose the key position you want create in the "Keys" window.

Click the "WRITE" button.

This starts the writing process and transponder will be stored with the appropriate data.

At this point you may be asked to save a new immobilizer dump.

The program displays a standard File Save dialog where you have to save the data.

After this you will be informed about the new data saved and must be written into the immobiliser.



Write the new dump into the immobilizer. Now it is ready to operate with the created transponder.If you are not asked to save a new file, it means that immobilizer is ready to operate with the created transponder without file replacing.

1. ABS plastic enclosure: ingress protection  IP65/DIN EN 60529

2. Rubber seal: prevents sliding on a workbench shock-proof function

3. USB connection:  no external power

4. Big hole:  adopted to large key

5. Three small holes:  adopted to various sizes of transponders
