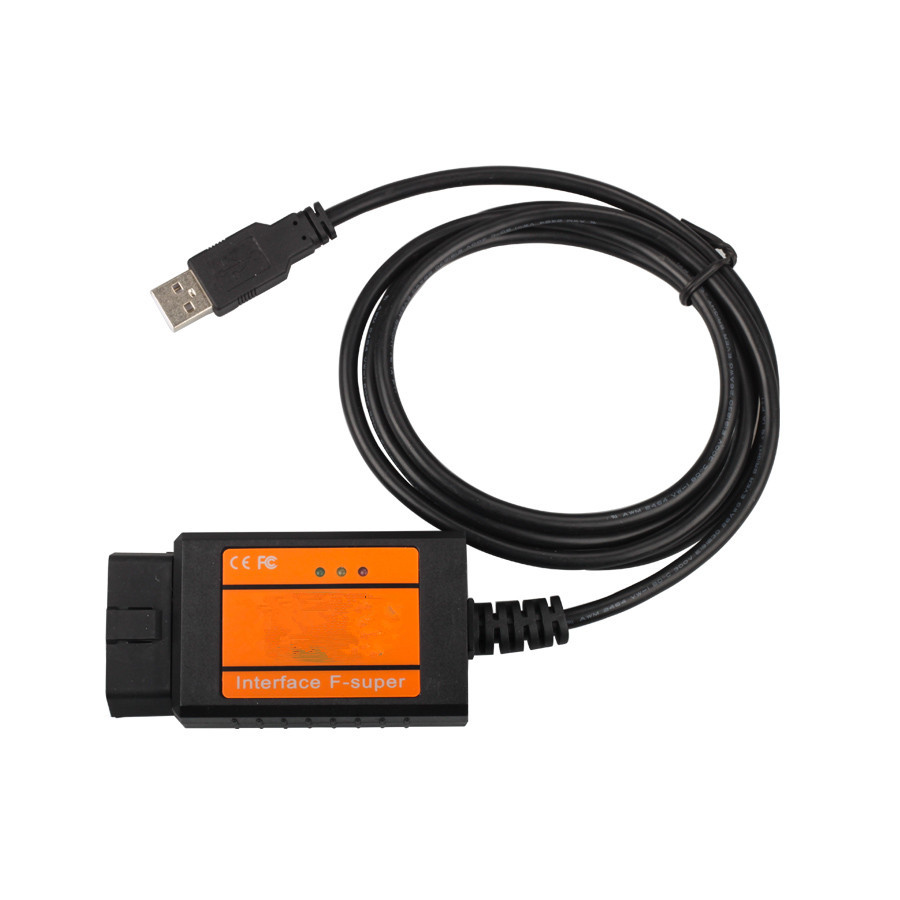

Ford USB Scan Tool
Item No.: CT36
Ford USB Scan Tool Feaures:
1.fully works with Ford and it is PC-based scan tool designed to use through USB port connection.
2.Ford scanner read and clear manufacturer specific trouble codes,
3.Ford USB Scan Tool display all the manufacturer specific sensor data in real-time.
USB Scan Tool for Ford
Language: English only
Operating System: Works with XP
Ford USB Scan Tool Note: Ford USB Scan Tool is normal for antivirus to flag some diagnostic files (.exe etc) as virus or Trojan. Always switch off antivirus in your computer before attempting to install any diagnostic software or the software may not install and essential diagnostic files may be corrupted.Do not use older versions, only use the software supplied with the tool.
Scanner for Ford is fully FORD compliant PC-based scan tool designed to use through USB port connection.
Ford USB Scan Tool Function:
1. Display all the manufacturer specific sensor data in real-time.
2. Read and clear manufacturer specific trouble codes.
3. Modules access: PCM, TCM, ABS, Airbag, Cluster
4. Processor: 90c2610 Protocols: FORD (SCP), FORD (ISO9141).
Ford USB Scan Tool Specification:
1. Vehicle List
1) Diesel Engine
Fusion 1.4TDCI,Fiesta 1.4TDCI,Focus 1.6TDCI,Focus 1.8TDCI,Focus cmax 1.6TDCI,Transit,Transit connect 1.8TDCI,Mondeo 2.0 TDCI
2) Gasoline Engine
KA 1.3i,Fiesta 1.4i 1.6i,Fusion 1.4i 1.6i,Focus 1.6i,Focus cmax 1.6i,Focus vct 1.6i,Focus cmax vct 1.6i,Focus ghia 1.6i,Mondeo 2.0i
2. Supported Protocols
FORD SCP (Standard Corporate Protocol --SAE J1850-PWM)
FORD CAN (Controller Area Network ----CAN ISO11898, SAE J2282)
