JDiag Elite II Pro
Item No.: CT88
JDiag Elite II Pro is a professional programming equipment which can fully support the international programming protocols SAE J2534-1 and J2534-2, and support ECU programming for hundreds of models. It has powerful functions.
JDiag Elite II Pro is a professional programming equipment which can fully support the international programming protocols SAE
J2534-1 and J2534-2, and support ECU programming for hundreds of models. It has powerful functions,
stable performance, professional intelligence, which make it the best choice for the comprehensive vehicle maintenance shop to do the
high-ranking professional vehicle diagnosis and programming.

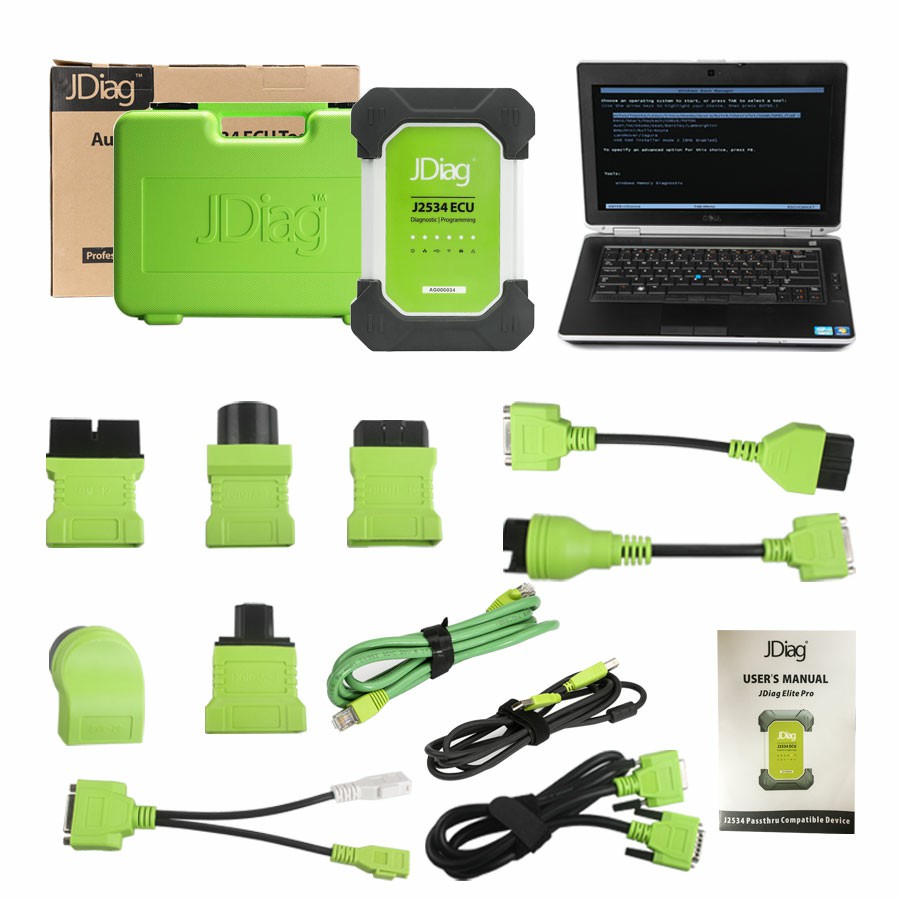

This JDiag Elite II Pro comes with Full Adapters.
JDiag Elite II Pro Main functions:
1. Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards; support car single module/whole car programming,record the database of interrupt programming and other special functions can effectively prevent the system to be crash.
2. Compatible with Land Rover, Jaguar, Mercedes-Benz, Volvo, Toyota, GM, Ford and other cars for OEM diagnostics;can support hundreds of models of dozens car brands from imports/joint ventures for diagnostic, fast and intelligent.
3. Instead of the VCI Bluetooth converter, used directly by WIFI, cables and other ways to connect with the JDiag diagnostic computer for diagnosis, can do testing via a variety of connection methods, much exible and convenient;
4. Adopt high-quality materials; the JDiag Elite II Pro is solid and strong, wear-resistant wear, more durable made by aluminum alloy, and the computer by industrial materials,can meet the three anti-military functional requirements;
JDiag Elite II Pro advantages:
1. JDiag Elite II Pro is a multi-check, highly integrated computer diagnostic tester, the product in the current market can only support single-brand diagnostic or programming, even if there are some products can work with different car brands,but only can do diagnostic, not able to do programming;
2. Elite II is a perfect whole set which includes the interface, software, computer and different vehicle adapters,the device is ready to work when you get, no need to prepare or install other accessories, no need to worry about the incompatibility issues between equipment and software, no need to worry about the problems of the guidance for using, after-sales service and so on.
JDiag Elite II Pro Technical Parameters:
CAN Bus (capable of ISO 15765, GMLAN, J1939, and ISO14229)
2nd CAN (Dual or Single Wire)
Ford SCP (J1850PWM)
GM Class2 (J1850VPW)
Chrysler SCI (J2610)
Compliant to SAE J2534 (Feb 2002) and SAE J2534-1 (Dec 2004) SAE J2534-2 (Dec 2014)
Compliant to ISO 22900-1 MVCI physical layer
Programming voltage on J1962 pin 6, 9, 11, 12, 13, 14 or Aux
6 General purpose analog inputs (0-27V, 2Ksps, 12 bit)
Ground pins 9, 12, or 15
Internal Compact Flash slot (must be configured when ordering)
Optional external Compact Flash slot
JDiag Elite II Pro Specifications:
Operating voltage: 7-26 Volts
VCI Size: 20cm (L) x 14cm (W) x 4.5cm (H)
Operating Temperature: Commercial Range (0 to +70 C)
ISO22900 Compliant for GM’s Tech2WIN software
