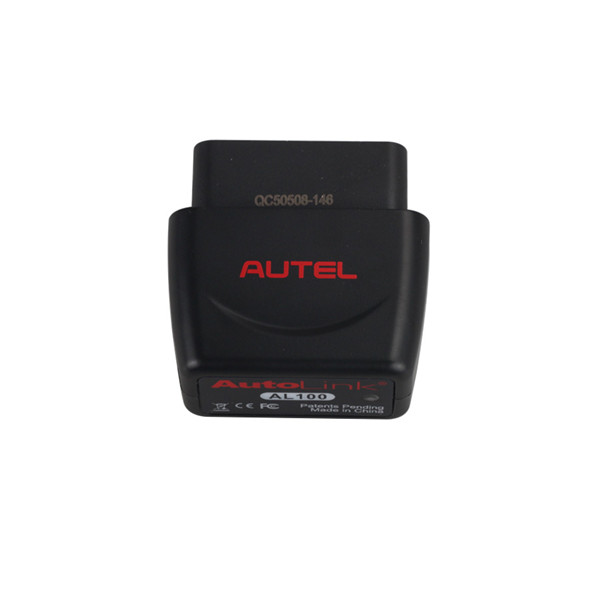

Autel Autolink AL100 provides easy access to vehicle diagnostics. Autel Autolink AL100 supports all 10 modes of OBDII test for a complete and fast diagnosis, in addition with thousands of troubleshooter code tips, which is truly time-saving ideal for DIYers and professional technicians.



Autel Autolink AL100 Notes: Only Can Be Used on IPhone,IPad,MINI iPad Above IOS 7.0



Autel Autolink AL100 Features and Functions:

1. Works on ALL 1996 and newer vehicles (OBDII & CAN)- domestic and import

2. Support Bluetooth wireless connection.

3. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes

4. Easily determines the cause of the Check Engine Light (MIL)

5. Turns off check engine light (MIL), clears codes and resets monitors

6. Views freeze frame data

7. Displays monitor and I/M readiness status (emissions)

8. Reads live PCM datastream

9. Displays live O2 sensor test data

10. Reads, stores and playbacks live sensor data

11. Enhanced OBDII Mode 6

12. Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time

13. Retrieves vehicle information (VIN, CIN and CVN)



Autel Autolink AL100 Specifications:

Operating Voltage: DC + 12V

Operating Temperature: 0°C to 55°C (32°F to 131°F)

Storage Temperature: -25°C to 70°C ( -13°F to 158°F)

Average Operating Current: ≤50mA

Wireless Working Range: 2 meters

Maximum Transmission Power: 4 dBm

Dimensions: (50 * 50 * 25)mm

Weight: (0.19±0.05) kg

Protocols: ISO15765-4 (CAN); ISO14230-4 (KWP2000) ISO9141-2 ; J1850 VPW; J1850 PWM

Operating System: IOS
