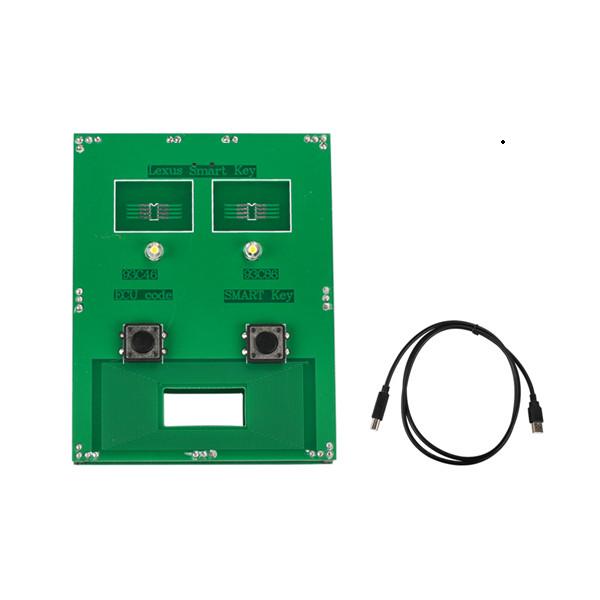

Smart Key Programmer For Toyota Lexus Features:

1. Supports all key lost.

2. Can make keys and add keys.

3. Support from 2009 to 2012

4. No need install software, usb cable is for getting power

Smart Key Programmer For Toyota Lexus Instruction:

1. Remove eeprom 93C46 chips from IMMO ECU and wire it to corresponding position on device. Place the key on the sensing area, press the 93C46 black button and initilize the key.

2. Remove eeprom 93C86 chips from BOX ECU and wire it to corresponding position on device. Place the key on the sensing area, press the 93C86 black button and initilize the key.

3. After finish initilizing key, please wire two chips back to your car.

4. Use Key maker device like T300,MVP,SBB to match your car key.

5. Then you can start your car with new key.

Smart Key Programmer For Toyota Lexus Usage:

1. Take the 93C46 IC from the Security box. Put it on the induction area of the programmer in the picture.

2. Connect USB cable; Put the new key on the Induction area. Then Press the black button once. LED light flash 10 seconds,

3. After finishing program the chip successful, LED light will turn off

4. Soldering the IC back on the Security box. Do not move the new key!

5. Take the 93C86 IC from the smart box. Put it on the induction area of the programmer in the picture. Then Press the black button once. LED light flash 10 seconds, after finishing program the chip successful, LED light will turn off. Soldering the IC back on the Security box.

6. Now the key is Initialization. Program the key via a normal key programmer such as T300 SBB etc which can make keys or add keys.

7. You can start your car with the programmed key now.
