Launch Creader 619
Item No.: AS01

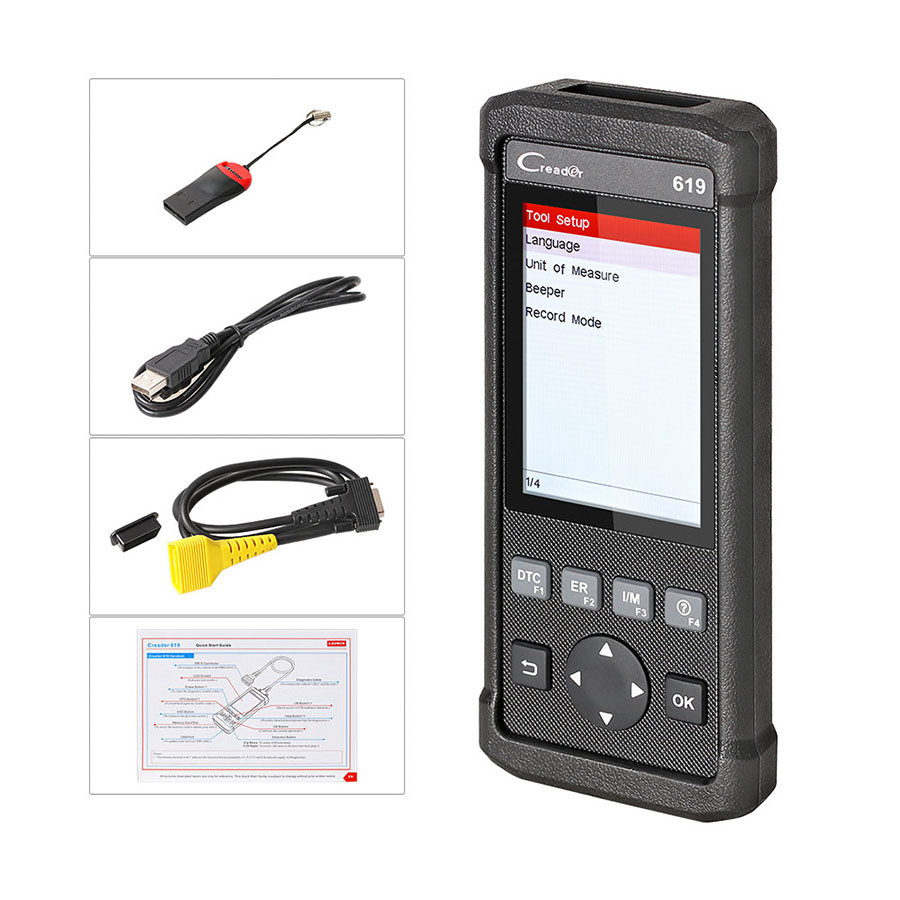

Launch Creader 619 Code Reader is a multipurpose CReader with a large format color display. Launch Creader 619 offers full OBDII / EOBD diagnostic functions, as well as ABS and SRS system diagnostic functions. Launch Creader 619 is a practical auto diagnostic tool that helps solve common mistakes in daily car maintenance.
Launch Creader 619 Highlight:
Easy to use:
All-in-one screen and easy-to-use hotkeys make the 619 an ideal tool for the DIYer and professional technicians alike.
Thoughtful design like Quick access with hot keys;
Durable buttons with metal covers to prolong life;
Extended cover connections to maximize protection will allow this unit to last through years of constant use.
Launch Creader 619 Functions:
Launch Creader 619 provides full OBDII/EOBD diagnostic functions:
Read dynamic data streams;
Read readiness status;
Turns off Malfunction Indicator Light (MIL);
Query freeze frame data;
Read current DTCs;
O2 Sensor test;
On-board monitor test;
Read pending DTCs;
On-board system or component control;
Read vehicle information;
Read permanent DTCs.
Works on ALL 1996 and newer OBD II & CAN domestic or import vehicles.
Launch Creader 619 Special functions:
CR6011 provides the ABS and SRS diagnostic functions, Read DTCs, clear DTCs, and read data streams for the ABS system and the SRS system.
Works on 46 car models, see the description for more models.
Launch Creader 619 Support Languages: English, Spanish, French, Russian, German, Portuguese, Japanese
Launch Creader 619 Features:
1. OBD full features
1) Read dynamic data streams and MIL
2) Read readiness status
3) Query freeze frame data
4) Read current DTC
5) Clear DTC
6) O2 sensor test
7) On board monitor test
8) Read awaiting DTC
9) On board system or component control
10) Read vehicle information
11) Read permanent DTC
2. Color and graphical display of data streams
3. Query DTC
4. Free update of USB interface internet
5. Multilingual support
6. Data and replay
7. Read and clear DTC, view data streams for the ABS system
8. Read and clear DTC, view data streams for the SRS system
9. Print data via PC
10. With the same functions as AUTEL AL619(USHKSC178).
Launch Creader 619 Specifications:
Screen: 4.0 "TFT 320 * 480 dpi
Voltage range: 9-18 V
Operating Temperature: 0 ~ 50
Temperature: -20 ~ 70
Dimension: 195mm * 86mm * 32mm (7.6 "* 3.4" * 1.2 ")
Weight: 460g (pending)
Support car models for OBDII diagnostic function:
All cars that suport OBDII, from 1996 to present (American cars), 2002 to presen (European cars).
How to update the software of Launch Creader 619?
1. Go to the official website of LAUNCH "www.dbscar.com", click "Products" ->"creader 4001~9081"; find the "creader 6001", then down load the update tool to your computer.
2. Install the update tool on your computer
3. Connect the Creader 619 to your computer via the USB data line in the package.
4. Run the update tool software, fill in the serial number and register code of creader 619 (The serial number and register code will be found on the screen when you conect creader 619 to your PC), click the update. Please keep the device connected and ensure the network works well.
