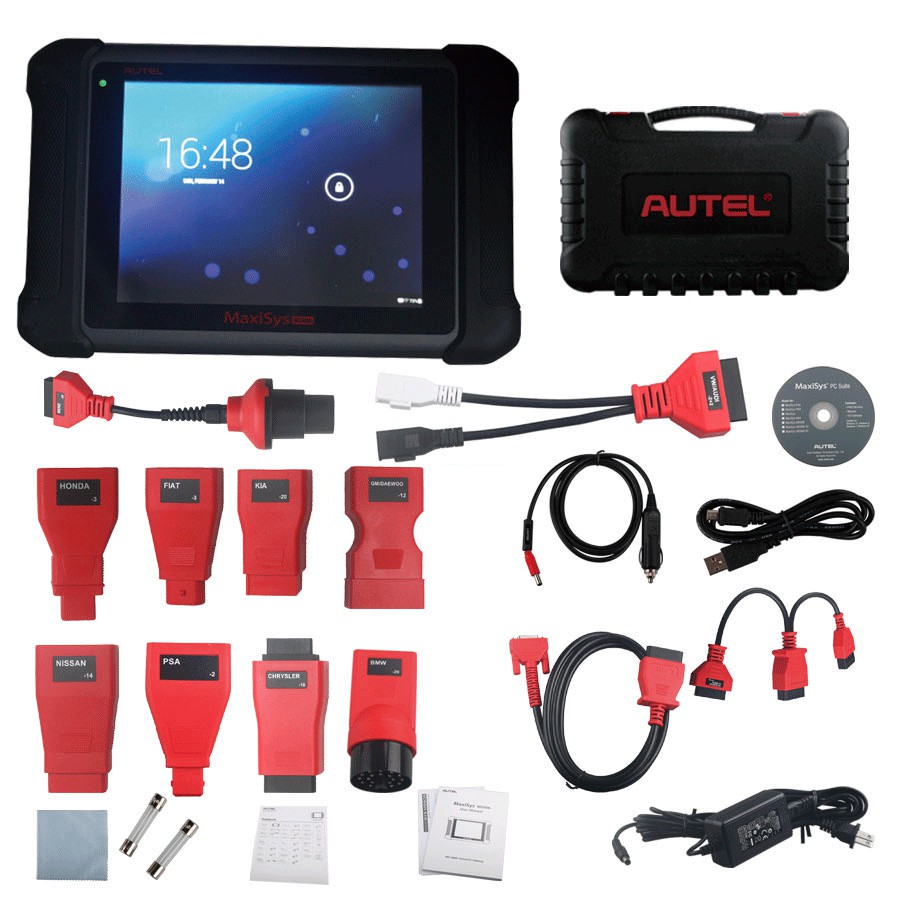

Autel MaxiSYS MS906 Features:

1. Extraordinarily powerful Samsung Exynos Hexa-core processor

2. 8.0” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology

3. Internal reliable 32GB SSD for better performance

4. Extremely easy-to-use with integrated vehicle communication interface

5. Built-in 8-megapixel rear camera with autofocus and flashlight

6. 802.11b/g/n Wi-Fi to access your favorite web resources

7. Unique ergonomic design with rubberized outer protection and a rugged internal housing

8. Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation

9. Open source Android Operating System for fast boot-up and multitasking

10. Easy and intuitive navigation makes finding what you need simple and fast

11. Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

12. Exceptional OE-Level system coverage for all electronic systems

13. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

14. Smart AutoVIN technology for identifying vehicles easily

15. Automatic system and software updates with real-time push message notifications via Wi-Fi

16. Instant remote control tech support anytime, anywhere

17. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

18. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

19. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

20. Convenient data management system for managing internal program applications and reviewing data



Autel MaxiSYS MS906 Specifications:

Operating System Android™ 4.4.2, KitKat

Processor Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

Memory 2 GB RAM & 32 GB ROM

Display 8.0" LED capacitive touch screen with 1024x768P resolution

Connectivity Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)

Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight

Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output Microphone, Single Speaker

Power and Battery 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply

Input Voltage DC/12 V (9-35 V)

Power Consumption 5 W

Operating Temperature -10 to 55°C (14 to 131°F)

Storage Temperature -20 to 70°C (-4 to 158°F)

Housing Rubberized outer protection and rugged internal housing

Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
