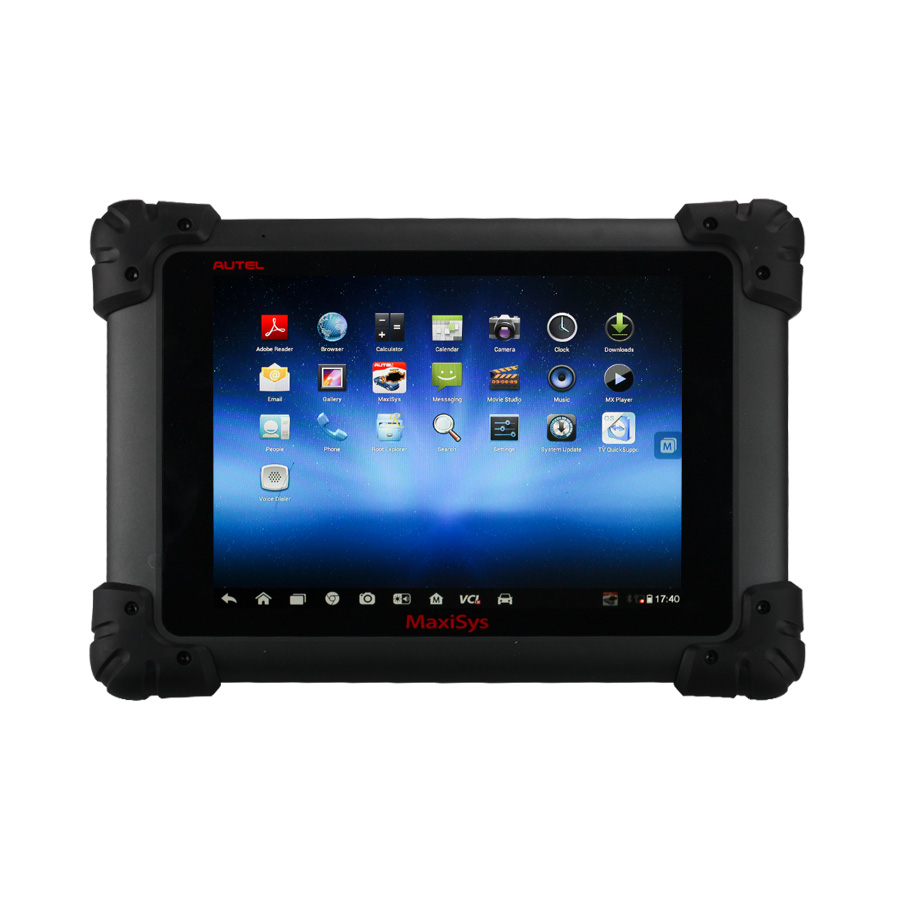

Autel MaxiSys MS908 has evolved far beyond the original capabilities of DS708. Autel MaxiSys MS908 can be updated Online. the MaxiSys MS908 is the perfect diagnostic solution for shops and technicians who demand unrivalled smart technology and smart repairs.





Autel MaxiSys MS908 Features and Functions:

1. Extraordinarily powerful Cortex-A9 quad-core processor

2. 9.7” 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology

3. Internal reliable and fast 32GB Solid State Drive for better performance

4. Built-in 5-megapixel rear camera with autofocus and flashlight

5. Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources

6. Unique shop tough ergonomic design features strong rubber protection and housing;

7. Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation

8. USB, audio and auxiliary ports make it easy to connect accessories

9. The VCI connects wirelessly to the main unit with Long-Range Class 1 Bluetooth

10. Open source Android Operating System for fast boot-up and multitasking

11. Easy and intuitive navigation makes finding what you need simple and fast

12. Extensive vehicle coverage for more than 80 vehicle makers including US, Asian and European

13. Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding

14. Displays live data in text, graph, analog and digital gauge for easy data review and analysis

15. Configures display options, sets triggers, records and playbacks results with one touch

16. Records and playbacks live data to pinpoint troubles of sensors and components

17. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

18. Remote technical support for convenient demonstration, training and increased customer satisfaction

19. Print out recorded data anytime and anywhere with Wi-Fi technology

20. Automatic Wi-Fi updates available in new software releases



Autel MaxiSys MS908 Specifications:

Operating System                                          AndroidTM 4.0, Ice Cream Sandwich

Processor                                                        Samsung Exynos Quad-Core Processor 1.4GHz

Memory                                                             2GB RAM & 32GB On-board Memory

Display                                                             9.7 inch LED capacitive touch screen with 1024x768P resolution

Connectivity                                                     Ethernet: RJ45 Ethernet Connection,Cellular: 3G/4G module: WCDMA

Camera (rear)                                                 Rear-facing, 5.0 Mexgapixel, AF with Flashlight

Sensors                                                            Gravity Accelerometer, Ambient Light Sensor (ALS)

Audio Input/Output                                           Microphone, Dual Speakers, 4-Band 3.5 mm stereotype/standard headset jack

Power and Battery                                           11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power

Input Voltage                                                     12 V (9-24 V)

Power Consumption                                       6.5 W

Operating Temperature                                   -10 to 55 ℃ (14 to 131 ℉)

Storage Temperature                                       -20 to 70 ℃ (-4 to 158 ℉)

Housing                                                              Strong plastic housing with protective rubber boot
