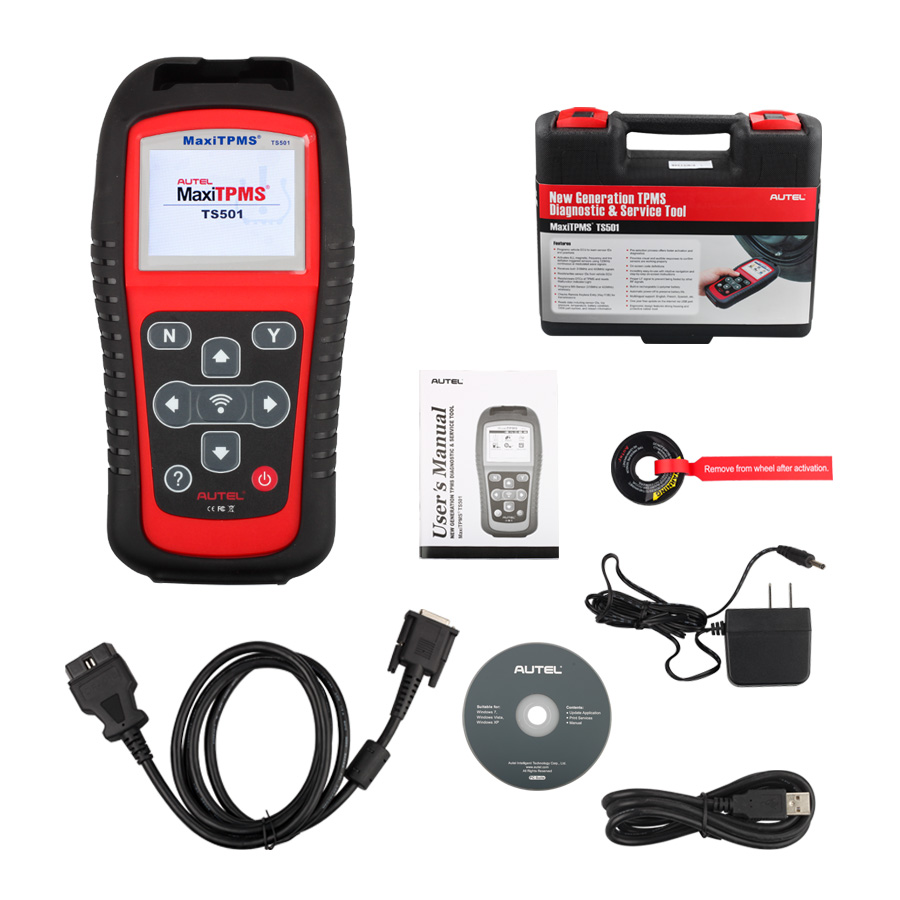

The Autel MaxiTPMS TS501 diagnostic & service tool is specially designed to program vehicles that do not have a TPMS relearn facility in the ECU. Autel MaxiTPMS TS501 is also able to work with all known magnetic and frequency triggered tire sensors for ALL vehicles sold worldwide.



Autel MaxiTPMS TS501 Features:

1. Pre-selection process offers faster activation and diagnostics

2. Accurate diagnosing results - a tool users can trust

3. Free Update Online Lifetime on Autel Official Website

4. Easy-to-use with intuitive navigation and step-by-step on-screen

Autel MaxiTPMS TS501 Functions:

Programs vehicle ECU to learn sensor IDs and positions

Activates magnetic, frequency and tire deflation triggered sensors using 125 kHz continuous or

modulated wave signals

Receives 315 MHz, 433.92 MHz and 309MHz signals

Reads sensor ID from vehicle ECU

Reads/clears codes of TPM system and resets malfunction indicator light

Built-in rechargeable Li-ion battery

On-screen code definitions

Simplifies the diagnostic process including four and five wheel

vehicles by showing vehicle graphs

Decodes sensor data and provides visual and audible

responses to confirm sensors are working properly

Interprets data including sensor ID, tire pressure, temperature,

battery status and OE part no.



Autel MaxiTPMS TS501 Instructions:

Prints TPMS sensor data via PC

Automatic power-off to preserve battery life

Proper LF signal to prevent being fooled by

other RF signals

Saves up to 16 TPMS records

If a failed sensor is detected, the tool displays

the replacement part number
