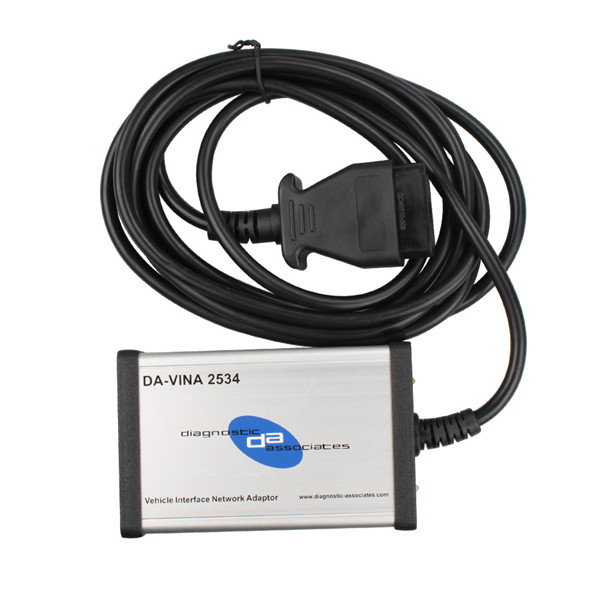

The DA-VINA 2534 Interface is a high-performance pass-thru (SAE J2534) vehicle interface. This unit connects directly to the vehicle OBDII (Diagnostic) connector; DA-VINA 2534 Interface then connects to any laptop via a USB 2.0 cable. Once the J2534 Driver files are loaded, this product will allow normal operation with OEM compliant J2534 diagnostic applications. DA-VINA 2534 Interface supports CAN, FT CAN, ISO and SCP (J1850) protocols.



DA-VINA 2534 Interface Features:

1. Language: English,German,Russian,French,Dutch,Portuguese,Japanese, Spanish, Italian,Chinese you can choose when installation

2. This DA-VINA 2534 can support car year after 2005

3. Covers CAN, ISO9141, SCP Vehicle Networks

4. Replacement for JLR SDD VCM

5. Best Suited for Legacy, Current and Future Vehicles

6. 12ft USB Cable as standard included

7. Easy to update for J2534 new functionality updates



DA-VINA 2534 Interface Note:

1.We don't offer software or Only cracked version of 137.02 version software.

Can't update online ,if update ,will locked the machine .if want update the software ,pls contact us

2.Computer requirement: 4 nuclear WIN7 or XP 32-bit systems, More than 20GB of Hard Disk partition C.



What does the DA-VINA 2534 do?

The DA-VINA 2534 Interface connects directly to the vehicle OBDII (Diagnostic) connector, DA-VINA 2534 then connects to the laptop via a USB cable for use with SDD. Once the J2534 DLL files are loaded, this product will allow normal operation with JLR SDD Diagnostic Tool. All communication is possible on with this device.



How does the DA-VINA 2534 Interface operate in J2534 Mode?

The DA-VINA is simple and easy to use.

1. Download the latest J2534 DLL software files from the Diagnostic Associates web site http://www.diagnostic-associates.com/download.htm  and install these on the SDD Laptop.

2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).

3. Connect the 12ft USB cable to the DA-VINA and the other end to the SDD Laptop.

4. The (PWR) LED will turn solid red to show the DA-Dongle is powered.

5. During communication with the vehicle the Status (STS) LED will flash green.
