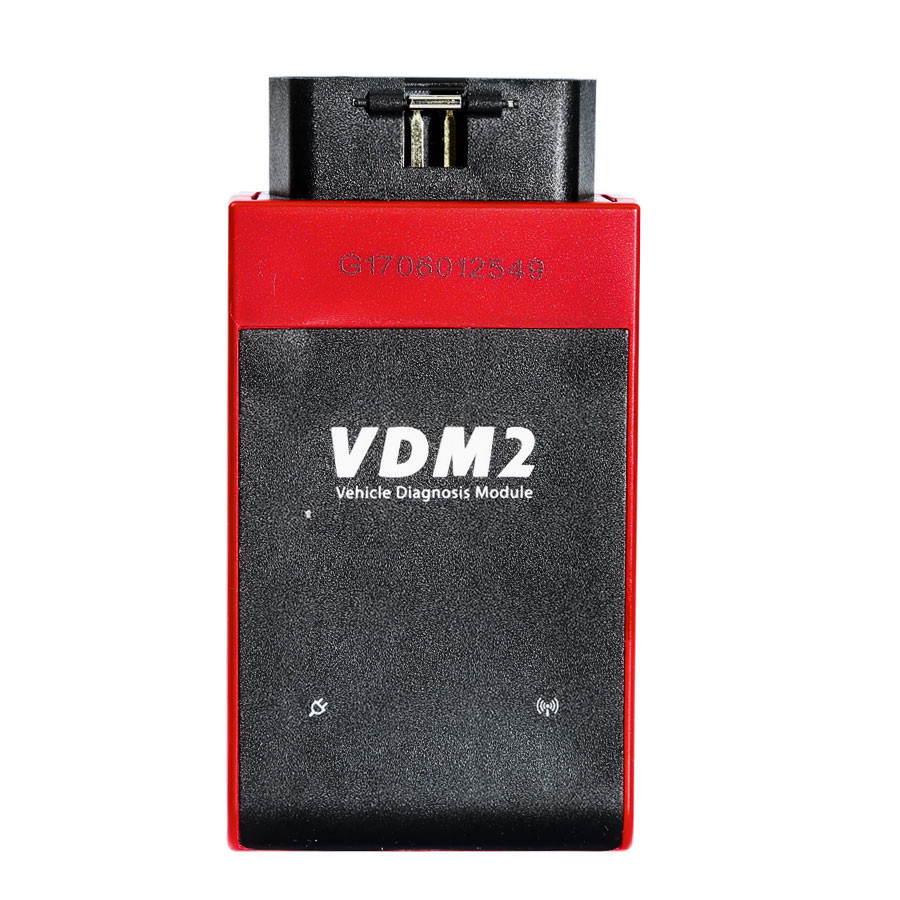

UCANDAS VDM2 Interface Function:

1. Update version for UCANDAS VDM, Android Diagnostic tool for European, American, Asian and Australian prevalent vehicles

2. Multi-language supported: English,German,Finnish, French, Hungarian, Italian, Japanese, Korean, Dutch, Polish, Portuguese, Portugal, Romanian, Russian, Swedish, Spanish, Turkish, Chinese Simplified, Chinese Traditional, Czech, Arabic

3. 2 years Free update, Latest software version V5.2, Software Free Download.

4. Functions are the similar with Vpecker Easydiag and XTUNER E3.

5. Support WIFI Connection and Bluetooth Connection(factory Still develop bluetooth version)

6.OS supported:Only Android Phone & Tablet



UCANDAS VDM2 Interface Features:

1.Supports ISO 9141-2, K/L line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, ISO15765-4 protocols

2.Can run at a high speed, medium speed and low speed CAN-BUS (Single CAN-BUS diagnosis protocols is supported)

3.Check out the year and model of the vehicles automatically and quickly

4.Includes all software: European, American, Asian and Australian prevalent vehicles

5.The OBDII diagnostic connector has a wide compatibility, which doesn't need to replace other connectors during the test

6.The new hardware is designed with multiple protection, interference and stability. And it is built with a overvoltage protection module,

in order to protect the scanner and vehicle against accidental damage during checking

7.Works well and stably in the extremely cold and hot environment



UCANDAS VDM2 Interface Specifications:

MCU:                                           ARM7 processor, 66MHz

Input Voltage:                             DC 8-18V

Communication Mode:            WIFI

Storage Temperature:             -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%

Operating Temperature:         -30 to 120 ºC(-22 to 248 ºF), Relative Humidity: <90%

Dimension:                               137mm*175mm*63mm



UCANDAS VDM2 Interface Language Supported:
