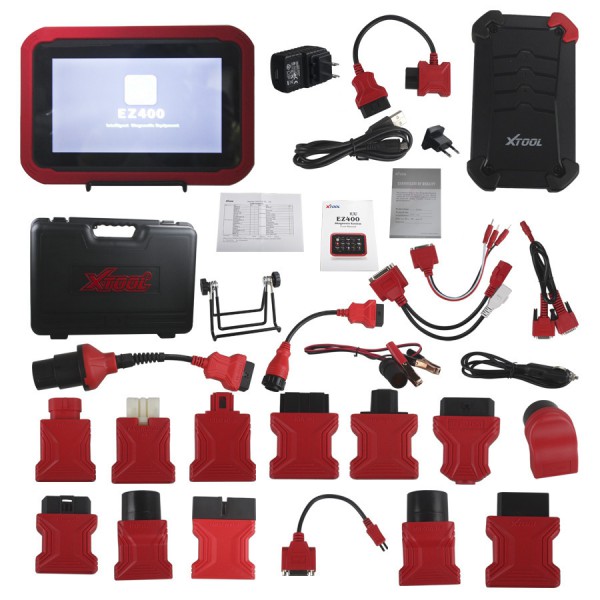

Xtool EZ400 Diagnosis System is a high-end and new style auto diagnostic device developed by XTOOL based on Android system. Xtool EZ400 Diagnosis System's open source Android operating system provides fast boot-up and multitasking. EZ400 provides extensive vehicle coverage for most US, Asian and European makes, which makes it the best solution for workshops.



Xtool EZ400 Diagnosis System Function:

1. Extensive vehicle coverage for most US, Asian and European vehicle makes

2. Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……

3. Support Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..

4. Support WIFI connection, PAD support Android System

5. Support online update.

6. Same Function as Xtool PS90,but can not read EEPROM.



Xtool EZ400 Diagnosis System Features:

*Easy registration with EZ400 connected to WIFI

*Wireless diagnosis via Bluetooth

*One-click software update via WIFI

*Remote access

*Diagnosis reports in PDF file

*Record and playback live data

*7 inch multi-touch screen

*On-board battery

*Extensive vehicle coverage for most US, Asian and European vehicle makes



Operating System: Android 4.4.4

Memory: 1GB RAM,16GB Flash

CPU Quad Core, 1.3 GHz

Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution

Sensors: Gravity Sensor, Light Sensor

Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port

Battery: 2400mAh, 3.7V

Power Voltage: 5V

Power Consumption: 8W

Operating Temperature: -20 to 50℃(-4 to 126℉).

midity: <90%

Dimension: (L*W*H): 208*140*15.5mm
